Omron
D2SW-P01L2D
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever PC Pins 0.1A 125VAC 30VDC 0.6N Thru-Hole
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron D2SW-P01L2D technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Force | 61gf |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2SW-P |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2SW-P01L2D Datasheet
Download the complete datasheet for Omron D2SW-P01L2D to view detailed technical specifications.
No datasheet is available for this part.

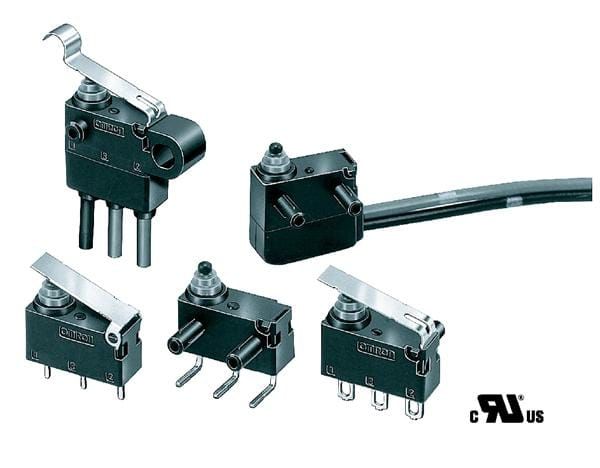

Product Images
