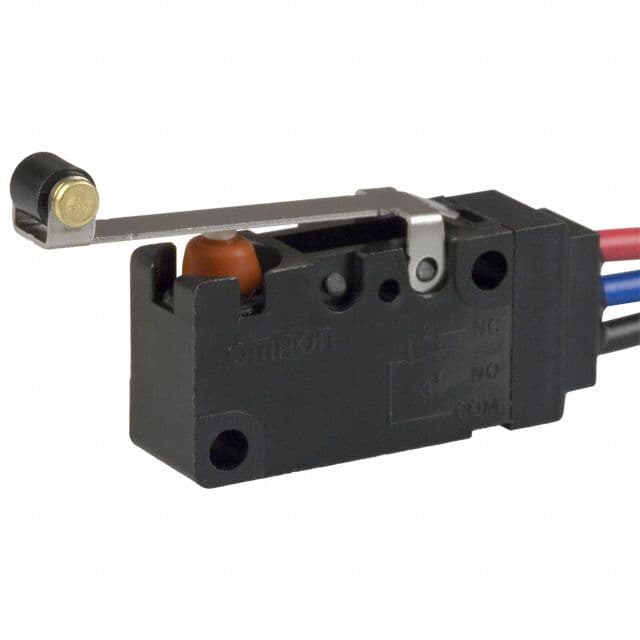

Subminiature basic switch featuring a roller lever actuator. SPDT (Single Pole Double Throw) switch function with momentary (On-Mom) operation. Rated for 2A contact current with silver contacts and plating. Offers a voltage rating of 250V AC and 30V DC, with an electrical life of 50,000 cycles and mechanical life of 1,000,000 cycles. Operates within a temperature range of -20°C to 70°C and boasts IP67, waterproof, and dust-tight ratings. Mounts via chassis mount, screw, or wire leads with straight orientation and wire lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2SW-P2L2M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Electrical Life | 50000Cycles |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Mount | Chassis Mount, Screw, Wire |
| Operating Force | 0.6N |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2SW-P |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
