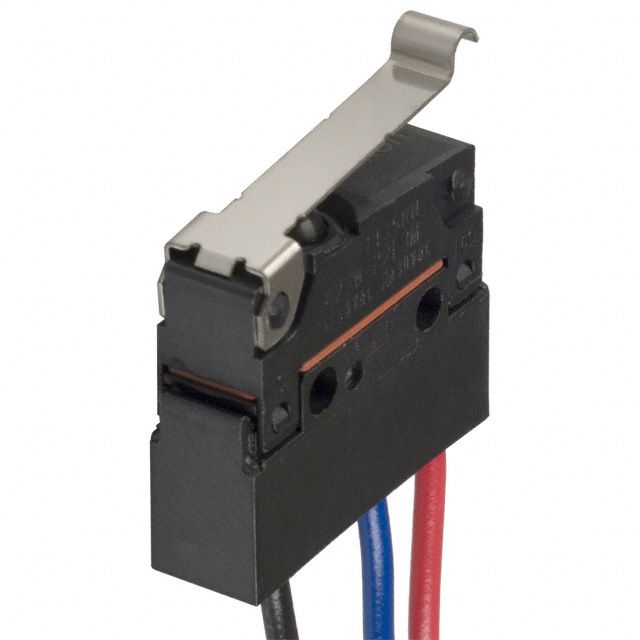

SPDT microswitch featuring a simulated roller lever actuator and wire lead termination. Rated for 2A at 250VAC and 30VDC, with a silver contact material and plating. Offers 500,000 electrical cycles and 1,000,000 mechanical cycles. Operating force is 0.6N, with an operating temperature range of -20°C to 70°C. IP67 rated for waterproof and dust-tight performance, with UL approval and RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2SW-P2L3M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D2SW-P2L3M technical specifications.
| Actuator Type | SIMULATED ROLLER LEVER |
| Approvals | UL |
| Package/Case | Molded |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 2A |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel, Chassis Mount, Screw, Wire |
| Number of Poles | 1 |
| Operating Force | 0.6N |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Tray |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2SW-P |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
