Current Rating100mA
MountingPanel, Chassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron D2VW-01L3-1HS technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Electrical Life
1000000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mechanical Life
10000000Cycles
Mount
Panel, Chassis Mount, Screw, Solder
Operating Force
1.18N
Orientation
Straight
Package Quantity
100
Packaging
Tray
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
D2VW
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D2VW-01L3-1HS Datasheet
Download the complete datasheet for Omron D2VW-01L3-1HS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

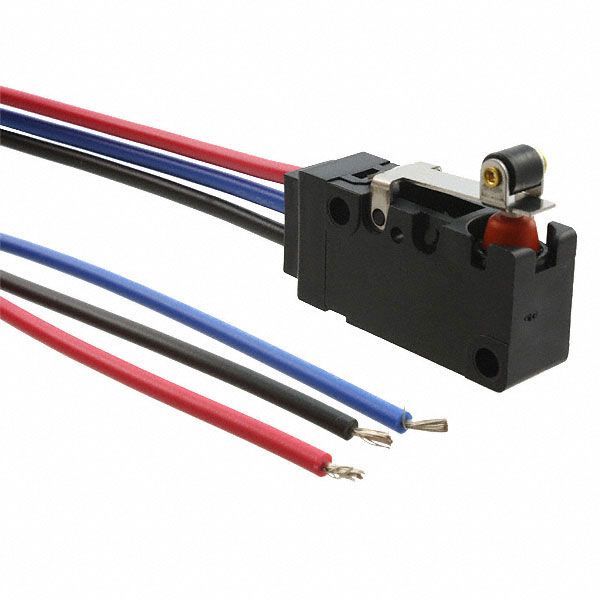

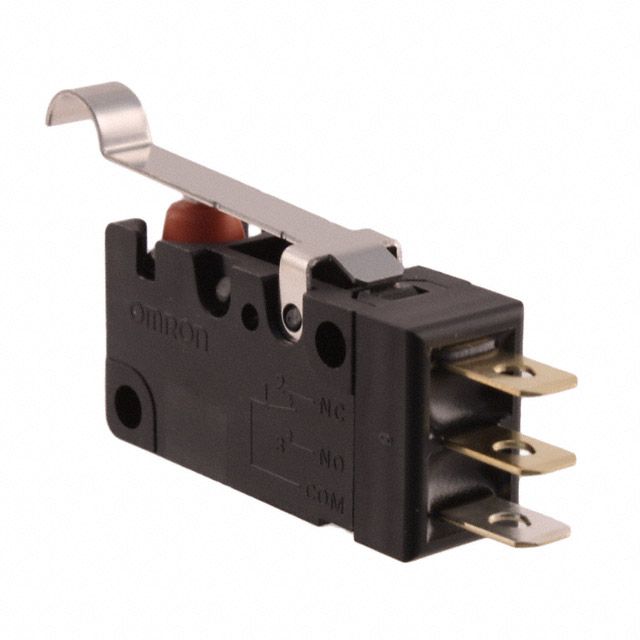

Product Images
