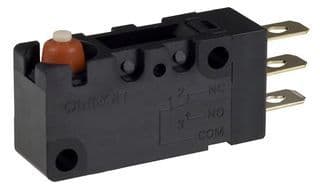

SPDT snap action switch featuring a pin plunger actuator and silver contacts. Rated for 5A at 125V DC and 250V AC, with a DC rating of 30V. Offers a 100,000-cycle electrical life and 10,000,000-cycle mechanical life. Operates within a temperature range of -40°C to 85°C. Mountable via panel, chassis, screw, or solder termination. IP67, waterproof, and dust-tight rated.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2VW-5-1HS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PIN PLUNGER |
| Contact Material | Silver |
| Current Rating | 5A |
| Depth | 10.3mm |
| Electrical Life | 100000Cycles |
| Height | 15.9mm |
| Lead Free | Lead Free |
| Length | 41.4mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Panel, Chassis Mount, Screw, Solder |
| Number of Poles | 1 |
| Operating Force | 1.96N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Ratings | IP67, Waterproof, Dust Tight, IP50 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2VW |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 7g |
| Width | 33mm |
| RoHS | Compliant |
Download the complete datasheet for Omron D2VW-5-1HS to view detailed technical specifications.
