Omron
D2VW-5L1B-3HS
Switch Snap Action N.O. SPST Long Hinge Lever 5A 250VAC 30VDC 0.59N Screw Mount Solder
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D2VW-5L1B-3HS technical specifications.
General
Contact Material
Silver
Electrical Life
100000Cycles
Max Operating Temperature
85°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Chassis Mount, Screw
Package Quantity
100
Packaging
Tray
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
D2VW
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D2VW-5L1B-3HS Datasheet
Download the complete datasheet for Omron D2VW-5L1B-3HS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

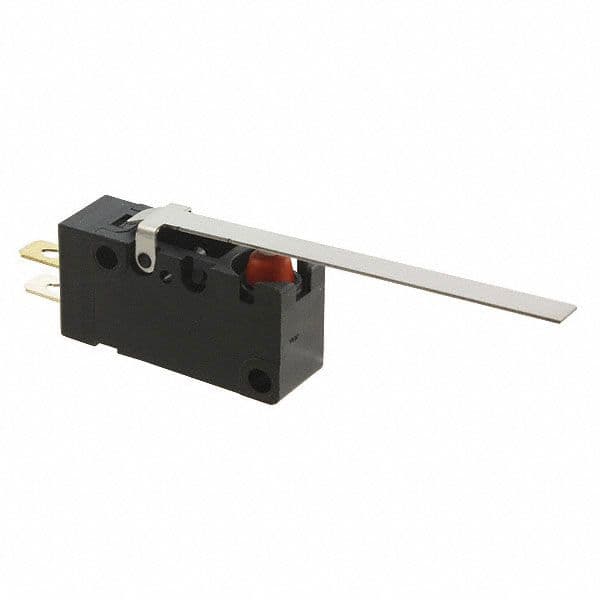

Product Images
