Miniature basic switch featuring a roller lever actuator. SPDT (Single Pole Double Throw) configuration with On-Mom function. Rated for 5A contact current at 250V AC maximum and 125V DC maximum. Offers a 5A current rating and silver contact material with silver plating. Designed for panel, chassis mount, screw, and solder termination, with straight orientation and solder terminals. IP67, waterproof, and dust-tight ratings ensure durability.
Current Rating5A
MountingPanel, Chassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron D2VW-5L2-1 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Differential Travel | 0.031inch |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Panel, Chassis Mount, Screw, Solder |
| Operating Force | 1.18N |
| Operating Position | 0.815inch |
| Orientation | Straight |
| Overtravel | 0.062inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.157inch |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | D2VW |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2VW-5L2-1 Datasheet
Download the complete datasheet for Omron D2VW-5L2-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

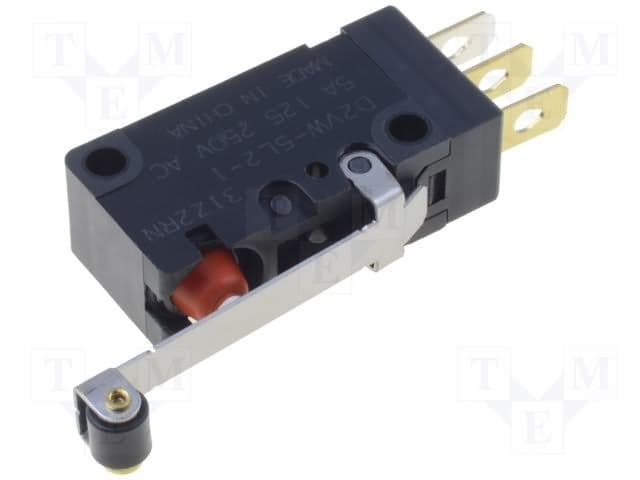

Product Images
