SPDT microswitch with a roller lever actuator, featuring a 5A current rating at 250VAC and 125VDC. This switch offers a 0.02-inch differential travel and 0.03-inch overtravel, with a pretravel of 0.063 inches. It boasts an electrical life of 100,000 cycles and a mechanical life of 10,000,000 cycles. Operating force is 2.25N, with an operating position at 0.815 inches. Terminations are solder, and it is RoHS compliant with IP67, waterproof, and dust-tight ratings.
Current Rating5A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron D2VW-5L2A-1 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Differential Travel | 0.02inch |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 2.25N |
| Operating Position | 0.815inch |
| Orientation | Straight |
| Overtravel | 0.03inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.063inch |
| Ratings | IP67, Waterproof, Dust Tight, IP50 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2VW |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2VW-5L2A-1 Datasheet
Download the complete datasheet for Omron D2VW-5L2A-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

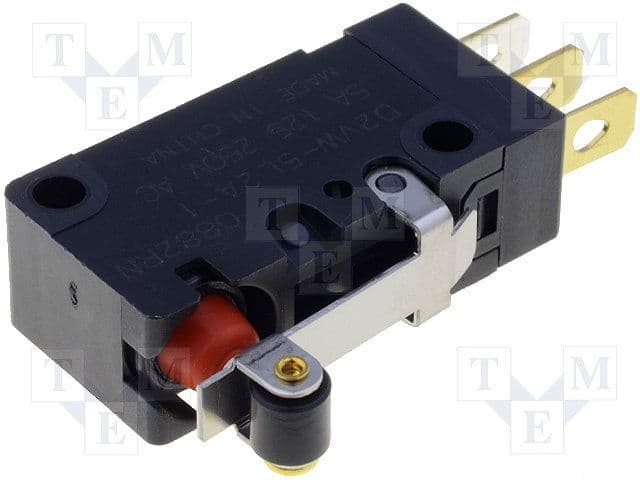

Product Images
