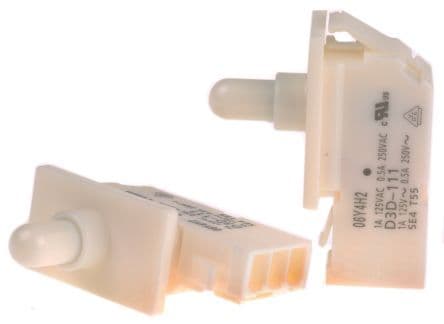

SPDT snap action switch featuring a plunger actuator. Rated for 1A at 125V AC, with a contact current rating of 500mA and gold contact material. Offers 1 pole and a 1A maximum current rating, with electrical and mechanical life cycles of 50,000 and 300,000 respectively. Operating temperature range from -30°C to 60°C, with panel mount and snap-in termination. UL and CSA approved, RoHS compliant, and available in a white, 15mm x 25mm x 15mm package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D3D-111 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PLUNGER |
| Approvals | UL, CSA |
| Package/Case | 125 |
| Color | White |
| Contact Current Rating | 500mA |
| Contact Material | Gold |
| Current Rating | 1A |
| Electrical Life | 50000Cycles |
| Height | 15mm |
| Lead Free | Lead Free |
| Length | 25mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 60°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Panel, Snap in |
| Number of Poles | 1 |
| Operating Force | 204gf |
| Package Quantity | 100 |
| Packaging | Tray |
| Ratings | IP00, IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D3D |
| Switch Function | On-Mom |
| Termination | Connector |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Width | 15mm |
| RoHS | Compliant |
