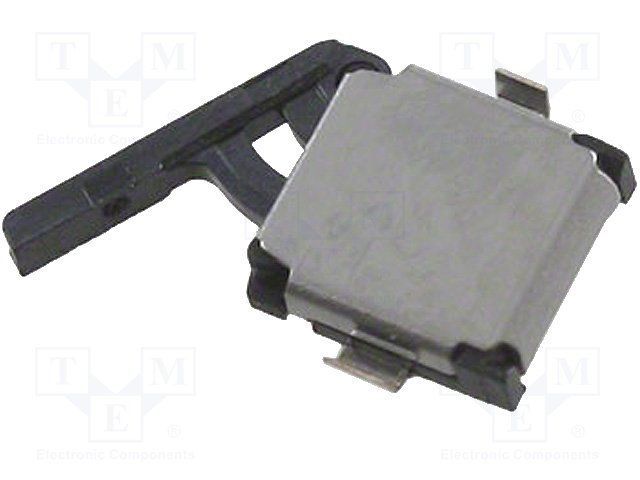

SPST detector switch featuring a long toggle actuator with a 2.8mm length and 24gf operating force. This surface mount (SMD/SMT) component offers a 1mA contact current rating at 5VDC, with electrical and mechanical life cycles of 100,000 and 150,000 respectively. Designed for right-angle orientation, it operates within a temperature range of -25°C to 85°C and is supplied in tape and reel packaging.
PackageSMD/SMT
Current Rating1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron D3SH-A1L1 technical specifications.
General
Actuator Length
2.8mm
Actuator Type
Toggle
Body Depth
3.1mm
Body Height
0.9mm
Body Length
3mm
Package/Case
SMD/SMT
Contact Current Rating
1mA
Current Rating
1mA
Electrical Life
100000Cycles
Height
0.9mm
Max Operating Temperature
85°C
Mechanical Life
150000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
5V
Mount
Surface Mount
Operating Force
24gf
Operating Position
0.213inch
Orientation
Right Angle
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3SH
Switch Function
Off-Mom
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
5V
Width
3mm
Compliance
RoHS
Compliant
