SPST detector switch with a 2.8mm long toggle actuator, designed for surface mount (SMD/SMT) applications. Features a right-angle orientation and a 1mA contact current rating at 5VDC. Offers 100,000 electrical cycles and 150,000 mechanical cycles, with an operating force of 24gf. Packaged in tape and reel, this RoHS compliant component operates within a temperature range of -25°C to 85°C.
Current Rating1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron D3SH-A1R1 technical specifications.
General
| Actuator Length | 2.8mm |
| Actuator Type | Toggle |
| Body Depth | 3.1mm |
| Body Height | 0.9mm |
| Body Length | 3mm |
| Contact Current Rating | 1mA |
| Current Rating | 1mA |
| Electrical Life | 100000Cycles |
| Height | 0.9mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 150000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 5V |
| Mount | Surface Mount |
| Operating Force | 24gf |
| Orientation | Right Angle |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D3SH |
| Switch Function | Off-Mom |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 5V |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3SH-A1R1 Datasheet
Download the complete datasheet for Omron D3SH-A1R1 to view detailed technical specifications.
No datasheet is available for this part.

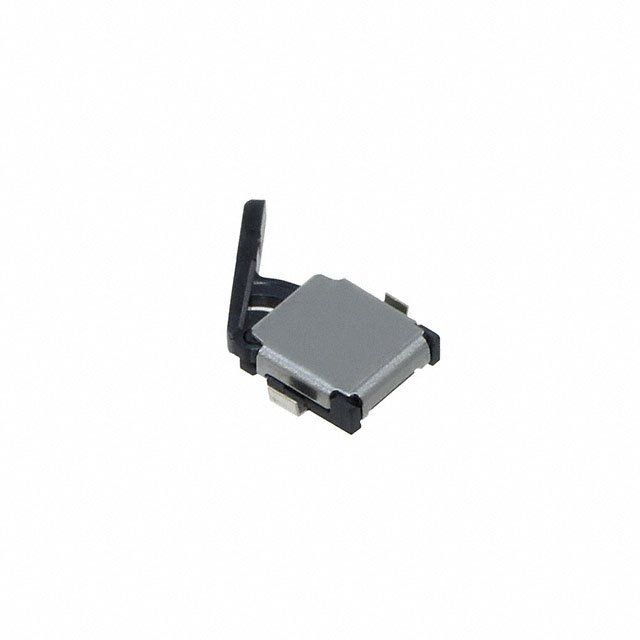

Product Images
