SPST detector switch featuring a long toggle actuator with a 2.8mm length and J-bend termination for right-angle surface mounting. This SMD/SMT component offers a 1mA contact current rating at 5VDC, with a mechanical life of 150,000 cycles and an electrical life of 100,000 cycles. Operating force is 0.24N, with an operating position of 0.213 inches. The switch operates within a temperature range of -25°C to 85°C and is RoHS compliant.
PackageSMD/SMT
Current Rating1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron D3SH-B0L1 technical specifications.
General
Actuator Length
2.8mm
Actuator Type
Toggle
Body Depth
3.1mm
Body Height
0.9mm
Body Length
3mm
Package/Case
SMD/SMT
Contact Current Rating
1mA
Current Rating
1mA
Electrical Life
100000Cycles
Height
0.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
5V
Mechanical Life
150000Cycles
Mount
Surface Mount
Operating Force
0.24N
Operating Position
0.213inch
Orientation
Right Angle
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3SH
Switch Function
On-Mom
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
30V
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Omron D3SH-B0L1 Datasheet
Download the complete datasheet for Omron D3SH-B0L1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

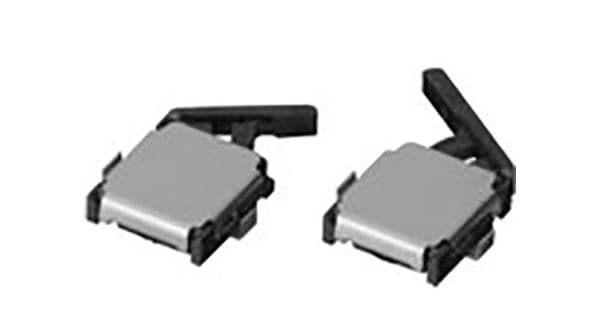

Product Images
