SPST snap action switch featuring a simulated roller lever and quick connect termination. Rated for 0.1A at 125VAC and 30VDC, with a gold contact material for reliable performance. Offers a 0.29N operating force and a 0.738-inch operating position, suitable for chassis mounting via screw terminals. Designed for a wide operating temperature range from -25°C to 200°C, with an electrical life of 500,000 cycles and mechanical life of 10,000,000 cycles.
Current Rating100mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3V-014-3C3-T-K technical specifications.
General
| Contact Material | Gold |
| Current Rating | 100mA |
| Differential Travel | 0.06inch |
| Electrical Life | 500000Cycles |
| Max Operating Temperature | 200°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Screw |
| Operating Force | 30gf |
| Operating Position | 0.738inch |
| Orientation | Straight |
| Overtravel | 0.062inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.157inch |
| Radiation Hardening | No |
| Ratings | IP40 |
| Series | D3V |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3V-014-3C3-T-K Datasheet
Download the complete datasheet for Omron D3V-014-3C3-T-K to view detailed technical specifications.
No datasheet is available for this part.

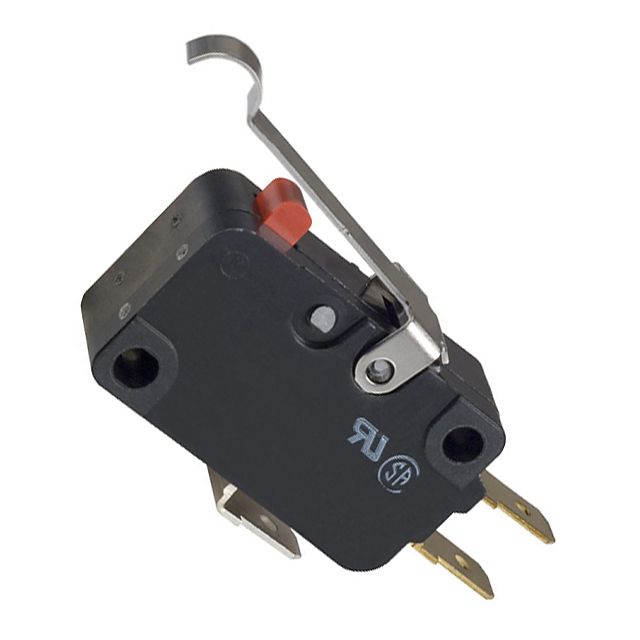

Product Images
