Miniature basic switch featuring SPST, On-Mom function with silver contacts. Rated for 6A at 250V AC/DC, it offers a 200,000-cycle electrical life and 10,000,000-cycle mechanical life. Operating force is 1.96N, with differential travel of 0.016 inches and overtravel of 0.04 inches. This chassis-mount switch supports solder termination and operates within a temperature range of -25°C to 105°C, with IP40 protection.
Current Rating6A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron D3V-11-2A5-K technical specifications.
General
| Contact Material | Silver |
| Current Rating | 6A |
| Differential Travel | 0.016inch |
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 1.96N |
| Operating Position | 0.579inch |
| Orientation | Straight |
| Overtravel | 0.04inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.047inch |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | D3V |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 6.2g |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3V-11-2A5-K Datasheet
Download the complete datasheet for Omron D3V-11-2A5-K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

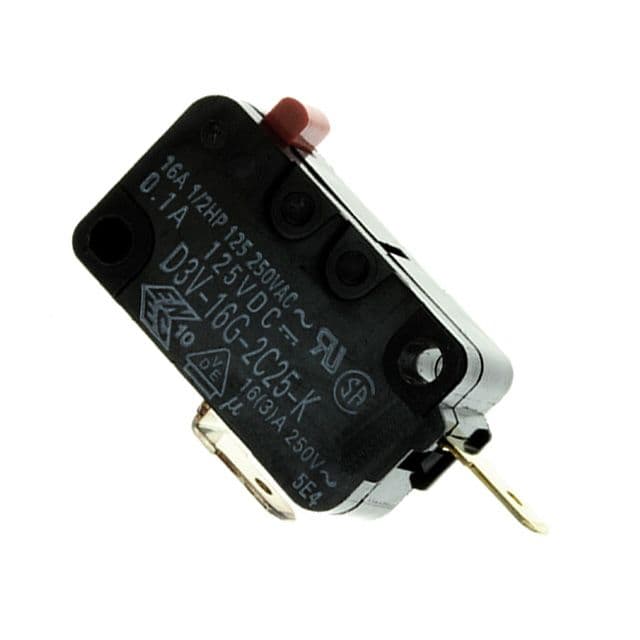

Product Images
