SPDT microswitch with a 16A, 250VAC contact current rating and 10A general current rating. Features a pin plunger actuator, quick connect and solder termination, and a silver contact material with silver plating. Offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles, operating within a temperature range of -25°C to 105°C. This RoHS compliant switch has an IP40 rating and is designed for chassis mounting.
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-16-1C4 technical specifications.
General
Actuator Type
PIN PLUNGER
Contact Current Rating
16A
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Differential Travel
0.016inch
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Position
0.579inch
Overtravel
0.04inch
Packaging
Bulk
Pretravel
0.047inch
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-16-1C4 Datasheet
Download the complete datasheet for Omron D3V-16-1C4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

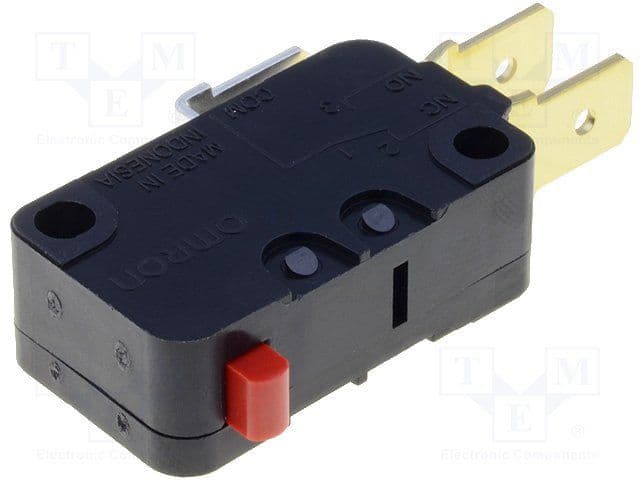

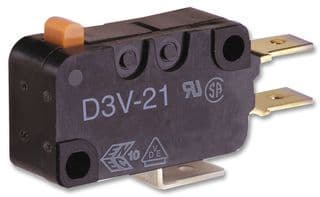

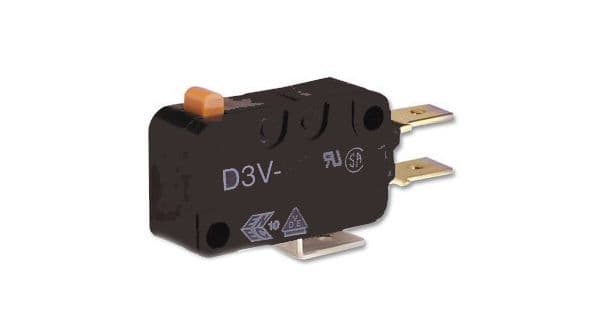

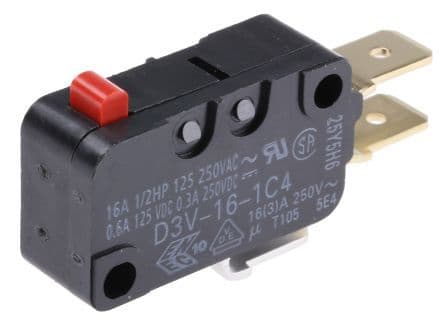

Product Images
