Omron
D3V-161M-3C5
OMRON ELECTRONIC COMPONENTS D3V-161M-3C5 Microswitch, SPST-NO, Quick Connect, Solder, 16 A, 250 VAC
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-161M-3C5 technical specifications.
General
Actuator Type
SHORT HINGE LEVER
Contact Current Rating
16A
Contact Material
Silver
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Force
200gf
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
Off-Mom
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-161M-3C5 Datasheet
Download the complete datasheet for Omron D3V-161M-3C5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

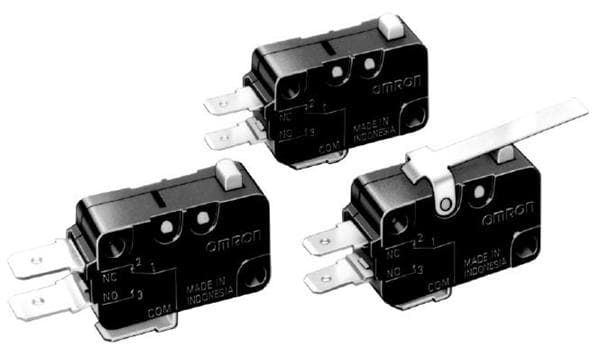

Product Images
