SPDT microswitch featuring a hinge lever actuator. Rated for 16A at 250VAC, with silver contacts and silver plating. Offers 100,000 electrical cycles and 10,000,000 mechanical cycles. Operating temperature range from -25°C to 105°C. Mountable via panel, chassis, screw, or solder termination.
Current Rating16A
MountingPanel, Chassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron D3V-162-1A4 technical specifications.
General
| Actuator Type | HINGE LEVER |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 16A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Panel, Chassis Mount, Screw, Solder |
| Operating Force | 0.59N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D3V |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3V-162-1A4 Datasheet
Download the complete datasheet for Omron D3V-162-1A4 to view detailed technical specifications.
No datasheet is available for this part.

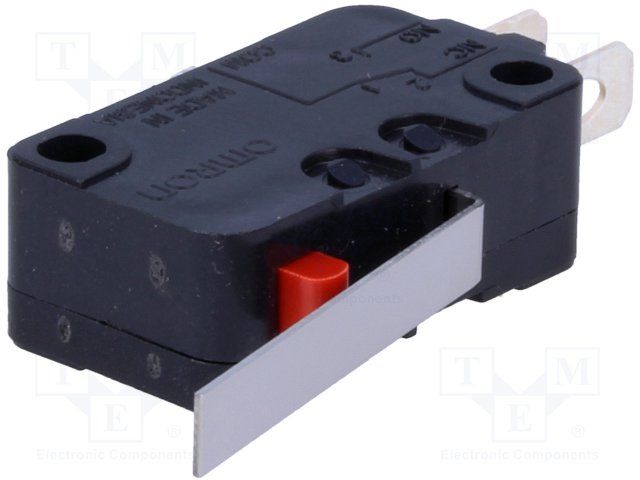

Product Images
