Technical Specifications
Omron D3V-162M-1C5-K technical specifications.
General
Contact Material
Silver
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Screw
Operating Force
1.23N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
D3V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-162M-1C5-K Datasheet
Download the complete datasheet for Omron D3V-162M-1C5-K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

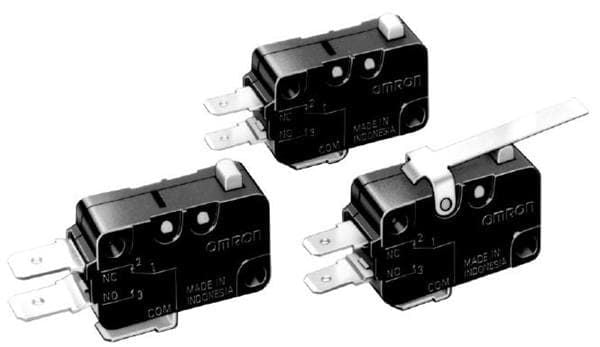

Product Images
