SPDT basic switch featuring a roller lever actuator. Rated for 16A contact current and 10A general current at 250VAC / 30VDC. Offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Constructed with silver contacts and silver plating, it operates within a temperature range of -25°C to 105°C. This chassis-mount switch utilizes quick connect terminations and is RoHS compliant.
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-166M-1C25 technical specifications.
General
Actuator Type
ROLLER LEVER
Contact Current Rating
16A
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Differential Travel
0.06inch
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Force
1.23N
Operating Position
0.815inch
Overtravel
0.062inch
Packaging
Bulk
Pretravel
0.157inch
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-166M-1C25 Datasheet
Download the complete datasheet for Omron D3V-166M-1C25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

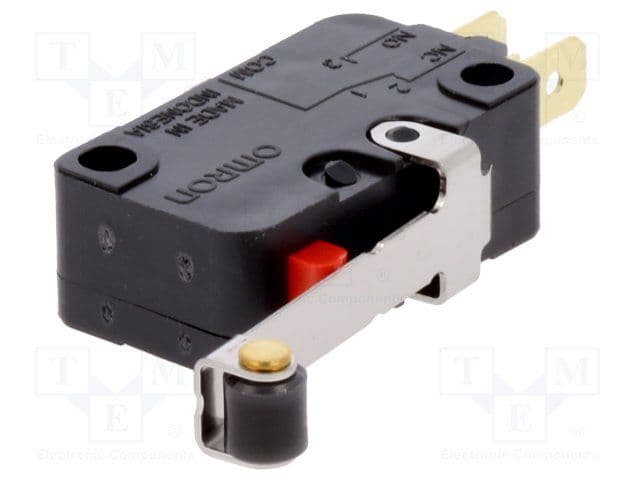

Product Images
