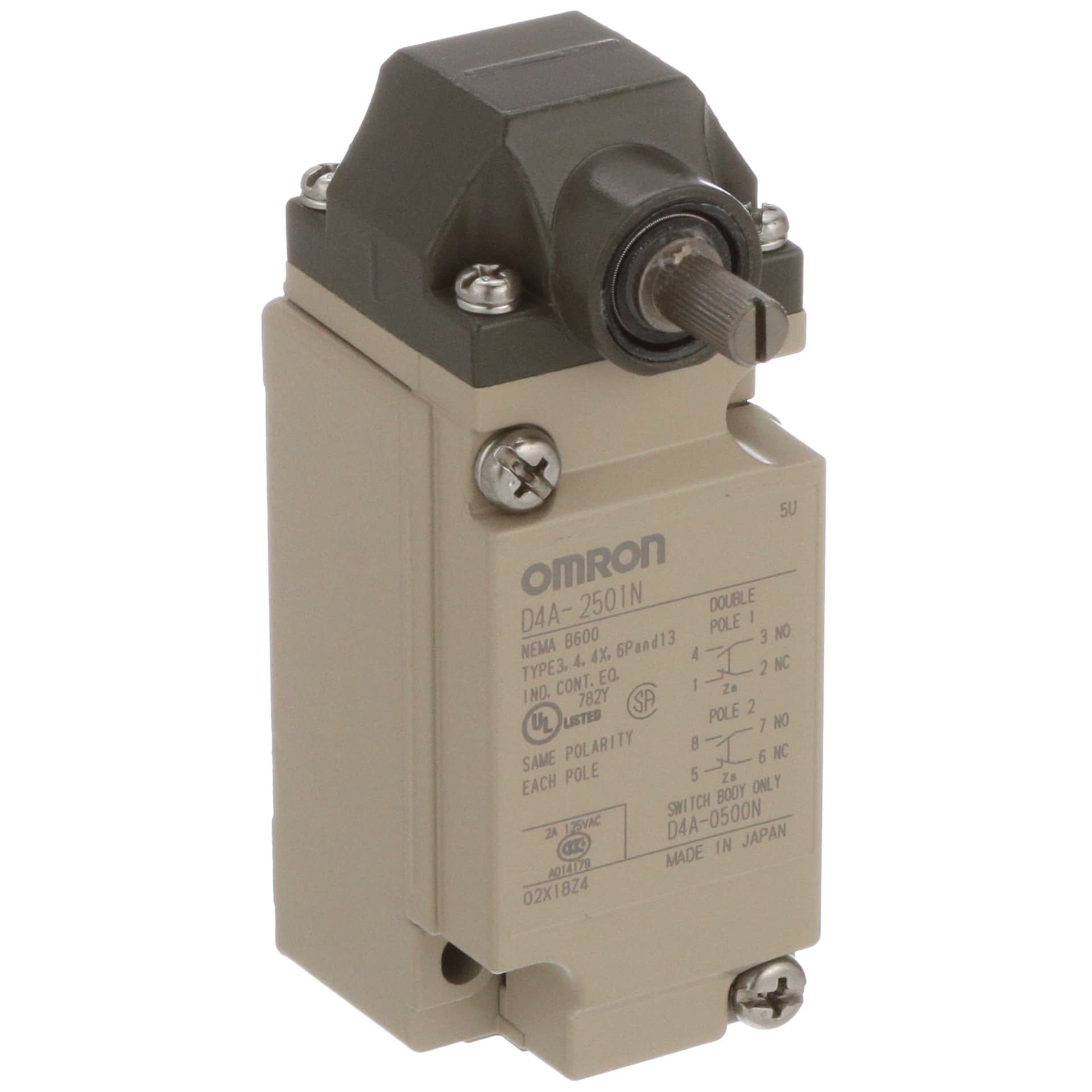

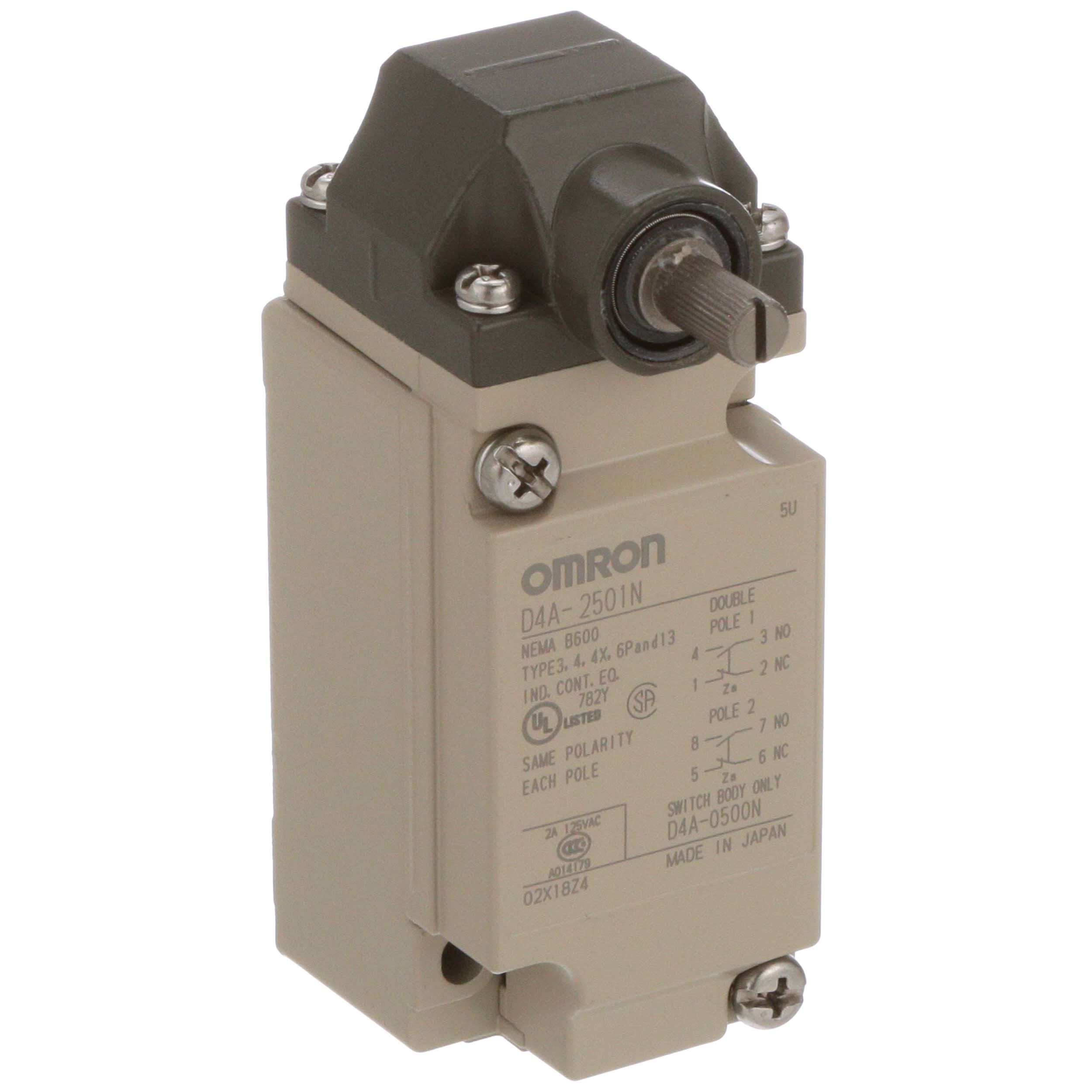

DPDT general purpose limit switch featuring snap-action contacts and a rotary roller lever actuator. Rated for 5A at 125V AC and 30V DC, with a maximum AC voltage rating of 600V and DC of 250V. Offers a mechanical life of 30,000,000 cycles and an electrical life of 750,000 cycles, operating within a temperature range of -40°C to 100°C. This switch is IP67 rated, waterproof, and dust-tight, with screw termination and chassis mounting capabilities.
Current Rating5A
MountingScrew, Chassis Mount
Quick Jump:
Technical Specifications
Omron D4A-2501-N technical specifications.
General
| Actuator Type | Rotary |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 44mm |
| Electrical Life | 750000Cycles |
| Length | 75.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 30000000Cycles |
| Mount | Screw, Chassis Mount |
| Number of Decks | 1 |
| Number of Poles | 2 |
| Operating Force | 0.39N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4A |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | DPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 42mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4A-2501-N Datasheet
Download the complete datasheet for Omron D4A-2501-N to view detailed technical specifications.
