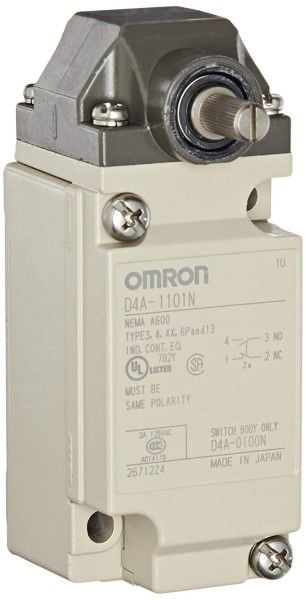

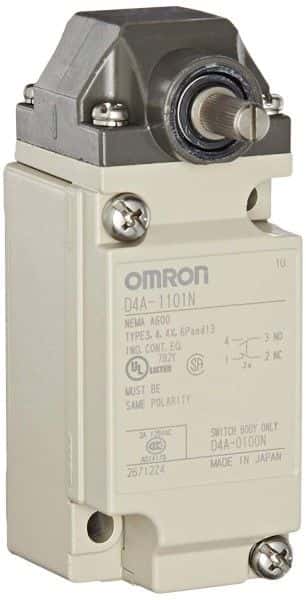

Omron D4A1101N technical specifications.
| Actuator Type | ROLLER LEVER |
| Contact Type | Snap Action |
| Depth | 44mm |
| Diameter | 7.37mm |
| Electrical Life | 1000000Cycles |
| Length | 75.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 50000000Cycles |
| Mount | Screw |
| Number of Poles | 1 |
| Orientation | Right Angle |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 600V |
| Width | 42mm |
| RoHS | Compliant |
Download the complete datasheet for Omron D4A1101N to view detailed technical specifications.
