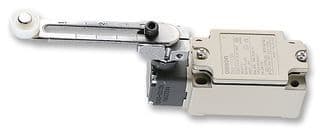

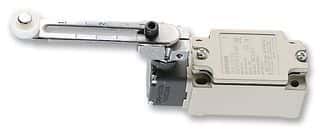

SPDT/DPDT limit switch featuring an adjustable roller lever actuator. Offers a 10A contact current rating at 120VAC and 30VDC. Designed for robust operation with a mechanical life of 30,000,000 cycles and electrical life of 500,000 cycles. IP67 rated for waterproof and dust-tight protection, with a wide operating temperature range of -40°C to 80°C. Chassis mountable with screw termination and a 960gf operating force.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4B-1116N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Contact Current Rating | 10A |
| Current Rating | 10A |
| Depth | 71mm |
| Electrical Life | 500000Cycles |
| Length | 180mm |
| Max Operating Temperature | 80°C |
| Mechanical Life | 30000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Number of Contacts | 2 |
| Operating Force | 960gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | D4B-N |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | DPDT, SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 30V |
| Width | 40mm |
| RoHS | Not Compliant |
