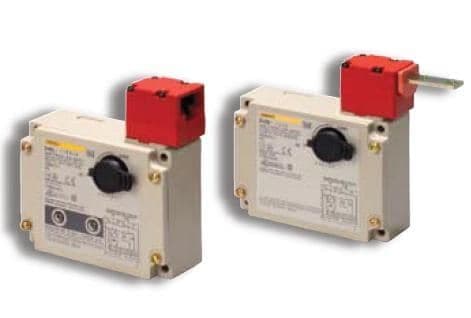

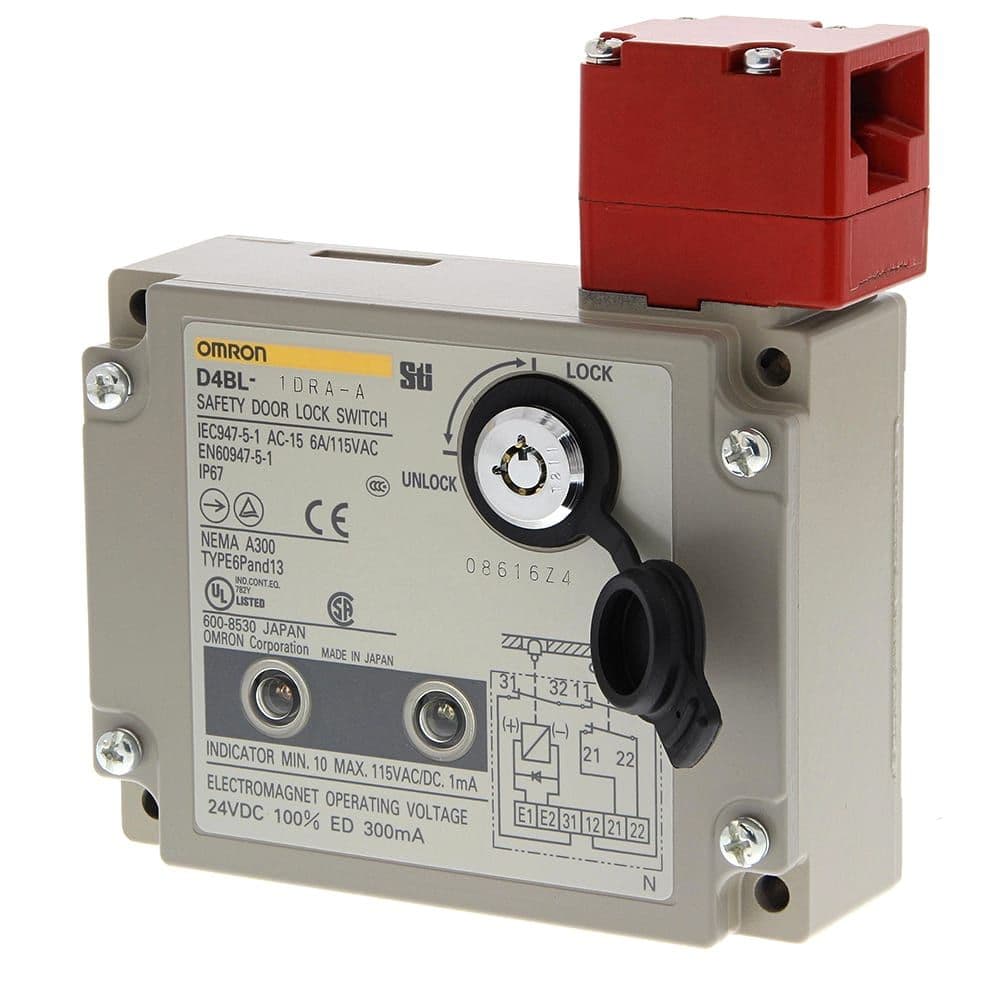

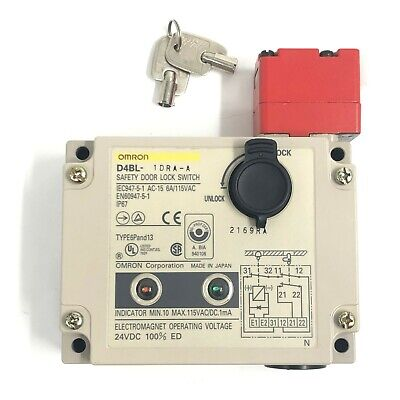

The D4BL-1DRA-A is a disconnect switch with a contact current rating of 10A and a current rating of 6A. It has a maximum operating temperature of 55°C and a minimum operating temperature of -10°C. The switch is rated for 500,000 electrical cycles and 1,000,000 mechanical cycles. It is available in a 300-pin package and is compliant with IP67, waterproof, and dust tight ratings. The switch is also RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4BL-1DRA-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Disconnect |
| Package/Case | 300 |
| Contact Current Rating | 10A |
| Current Rating | 6A |
| Electrical Life | 500000Cycles |
| Height | 124mm |
| Max Operating Temperature | 55°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Chassis Mount |
| Operating Force | 19.61N |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.591inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4BL |
| Switch Function | On-Off |
| Termination | Screw |
| Throw Configuration | 3P3T, SPST, DPST |
| Voltage Rating (AC) | 115V |
| RoHS | Compliant |
