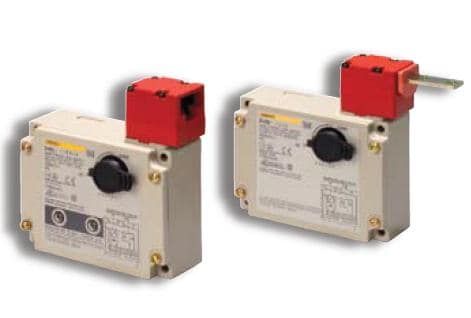

The D4BL-3CRAOKUMA disconnect switch from Omron is a chassis mount switch rated for 3A and 250V AC. It features a SPST/DPST throw configuration and meets IP67, waterproof, and dust tight ratings. The switch has an operating force of 2000gf and a pretravel of 0.591inch. It can withstand up to 500000 electrical cycles and 1000000 mechanical cycles. The operating temperature range is from -10°C to 55°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4BL-3CRAOKUMA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Disconnect |
| Current Rating | 3A |
| Electrical Life | 500000Cycles |
| Max Operating Temperature | 55°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Chassis Mount |
| Operating Force | 2000gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.591inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | D4BL |
| Termination | Screw |
| Throw Configuration | SPST, DPST |
| Voltage Rating (AC) | 250V |
| RoHS | Compliant |
