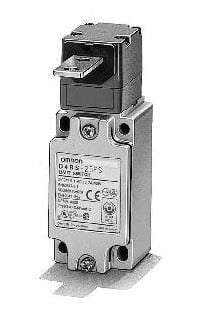

The D4BS-35FS is a screw mount disconnect switch with a contact current rating of 10A and a voltage rating of 120V AC. It has a mechanical life of 1,000,000 cycles and an electrical life of 500,000 cycles. The switch is rated for operation between -40°C and 80°C and is compliant with IP67, waterproof, and dust tight ratings. It is available in a bulk packaging configuration with a package quantity of one.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4BS-35FS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Disconnect |
| Contact Current Rating | 10A |
| Current Rating | 10A |
| Electrical Life | 500000Cycles |
| Height | 112mm |
| Lead Free | Lead Free |
| Length | 112mm |
| Max Operating Temperature | 80°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Number of Poles | 1 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.394inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | D4BS |
| Termination | Screw |
| Throw Configuration | DPDT, DPST, SPDT, SPST |
| Voltage Rating (AC) | 120V |
| Width | 40mm |
| RoHS | Not Compliant |
