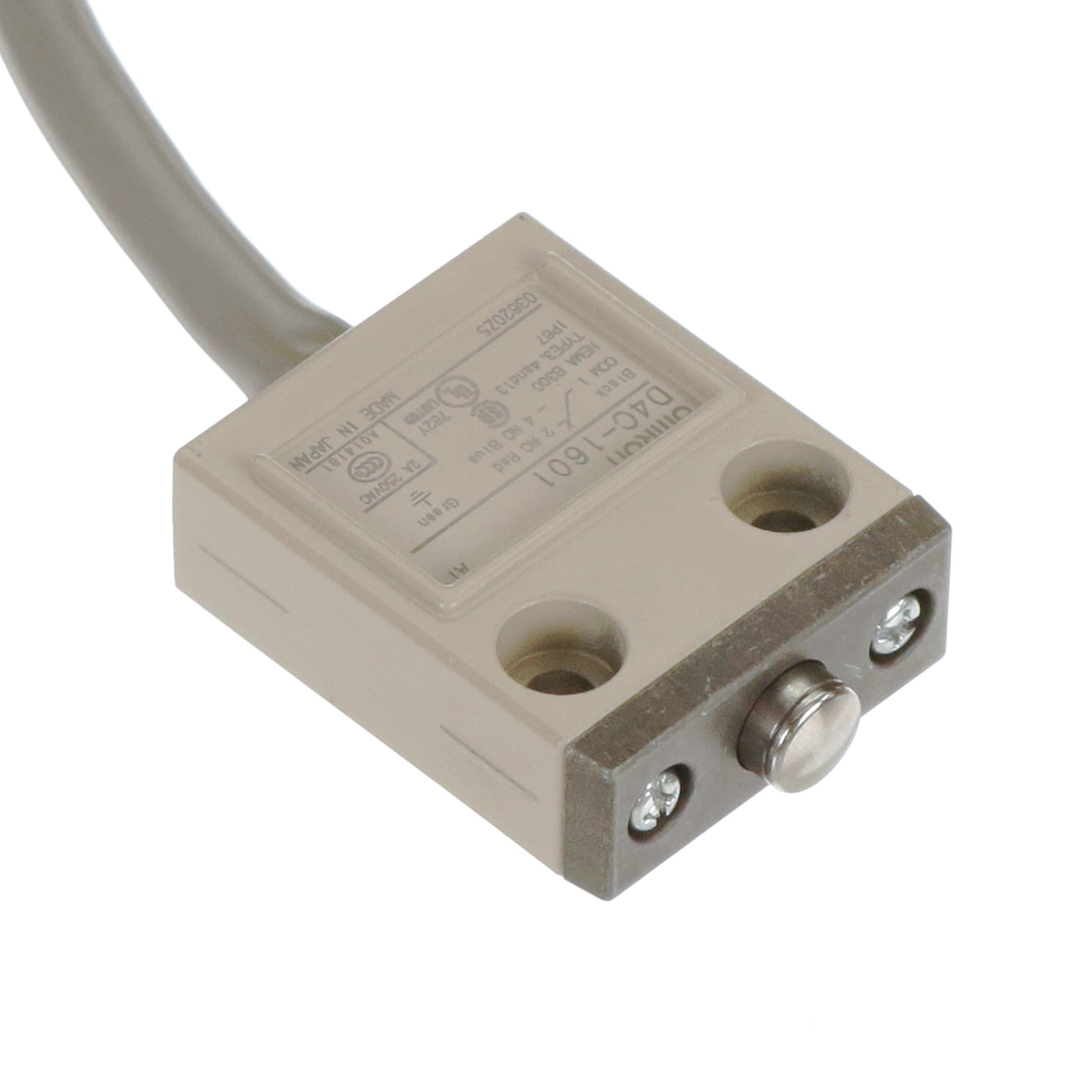

SPDT limit switch featuring a pin plunger actuator and snap-action contacts. Rated for 5A at 250VAC and 30VDC, with a mechanical life of 10,000,000 cycles and electrical life of 200,000 cycles. This chassis-mount switch offers IP67, waterproof, and dust-tight protection, operating within a temperature range of -10°C to 70°C. Dimensions are 54.2mm (length) x 40mm (width) x 16mm (depth), with cable lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4C-1601 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PLUNGER |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 16mm |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Length | 54.2mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Panel, Screw |
| Number of Poles | 1 |
| Operating Force | 1200gf |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4C |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | 4P4T, SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Width | 40mm |
| RoHS | Compliant |
