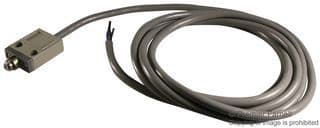

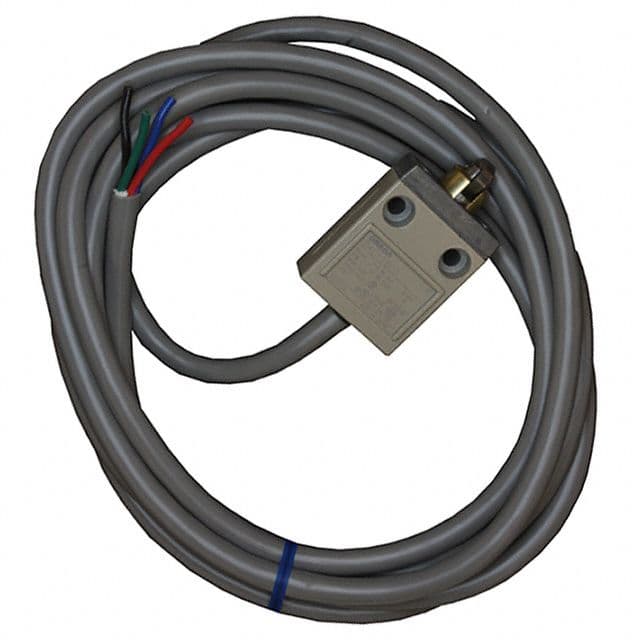

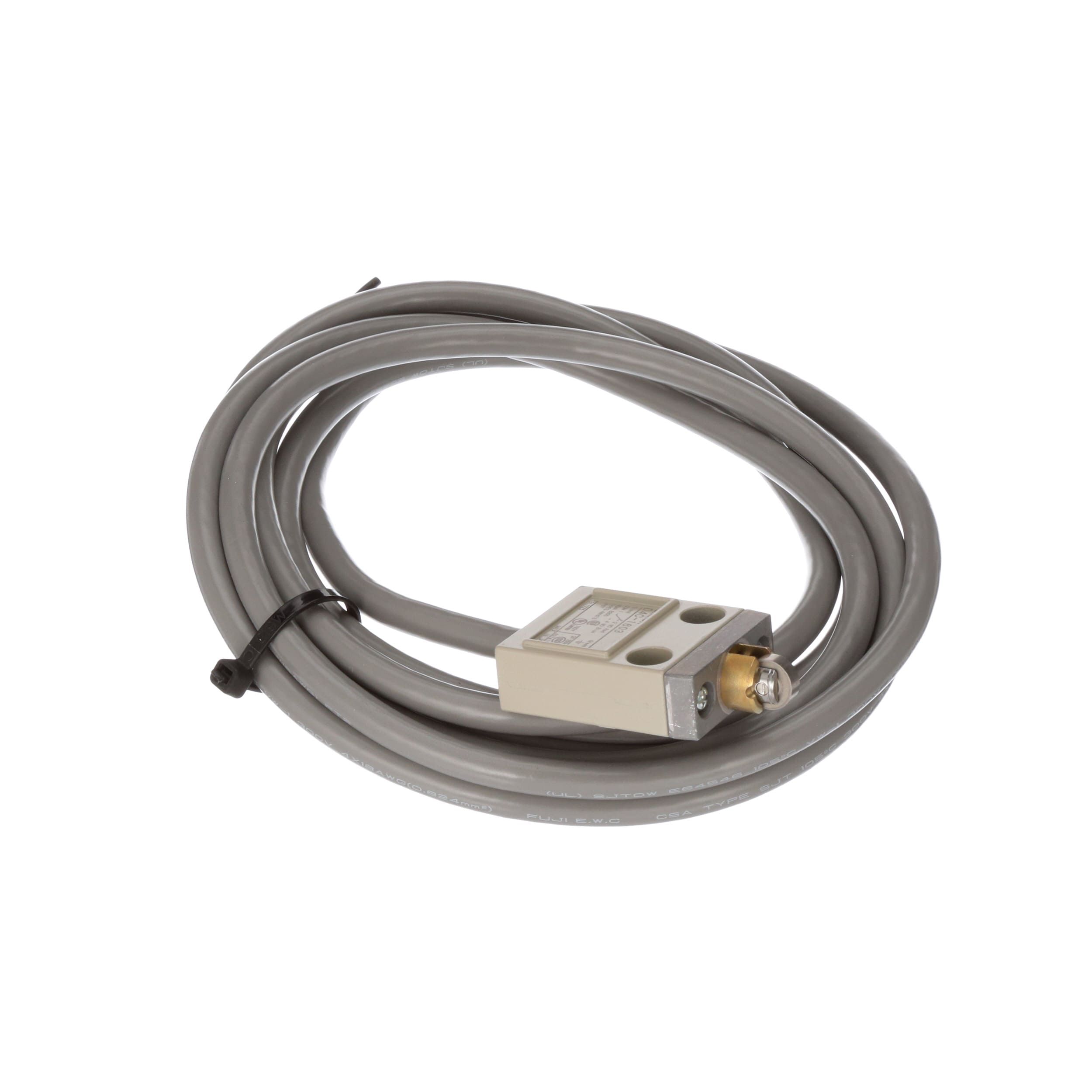

SPDT snap-action switch with a 5A current rating and 250VAC/30VDC voltage rating. Features a straight orientation, cable lead termination, and panel/chassis mount with screw fastening. Offers IP67, waterproof, and dust-tight ratings, with an electrical life of 200,000 cycles and a mechanical life of 10,000,000 cycles. Operating force is 11.77N, with an operating temperature range of -10°C to 70°C. UL and CSA approvals confirm its reliability.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4C-1603 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 17.4mm |
| Electrical Life | 200000Cycles |
| Height | 67mm |
| Length | 40mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel, Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 11.77N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4C |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | DPDT, SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Width | 40mm |
| RoHS | Compliant |
