Omron
D4C-3402
Switch Limit N.O./N.C. SPDT Top Roller Plunger Screw Mount 4A 30VDC 11.77N Linear Cable
Current Rating4A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4C-3402 technical specifications.
General
| Current Rating | 4A |
| Differential Travel | 0.008inch |
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Chassis Mount |
| Operating Position | 1.122inch |
| Overtravel | 0.118inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.071inch |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | D4C |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4C-3402 Datasheet
Download the complete datasheet for Omron D4C-3402 to view detailed technical specifications.
No datasheet is available for this part.

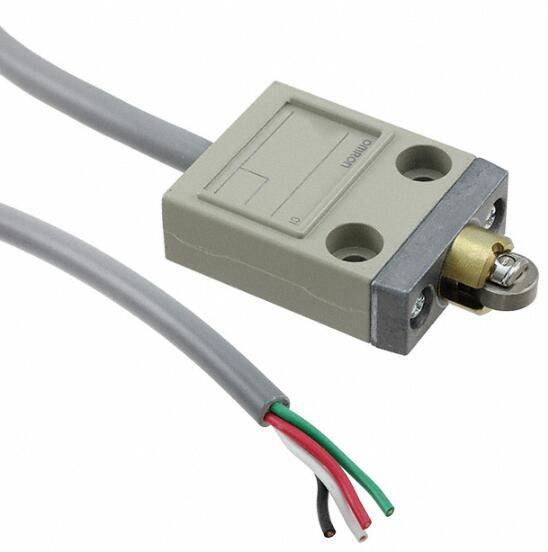

Product Images
