Omron
D4C-6302
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 0.1A 30VDC 11.77N Linear Screw Mount
Current Rating100mA
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4C-6302 technical specifications.
General
Current Rating
100mA
Differential Travel
0.008inch
Electrical Life
200000Cycles
Max Operating Temperature
70°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-10°C
Mount
Chassis Mount
Operating Position
1.122inch
Overtravel
0.118inch
Package Quantity
1
Packaging
Bulk
Pretravel
0.071inch
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
D4C
Switch Function
On-Mom
Termination
Cable Leads
Throw Configuration
SPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D4C-6302 Datasheet
Download the complete datasheet for Omron D4C-6302 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

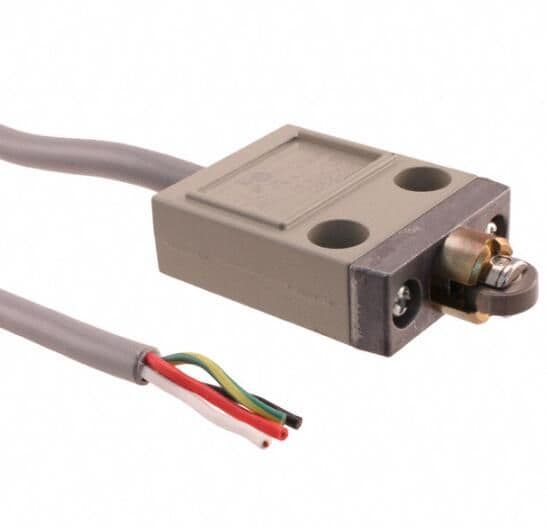

Product Images
