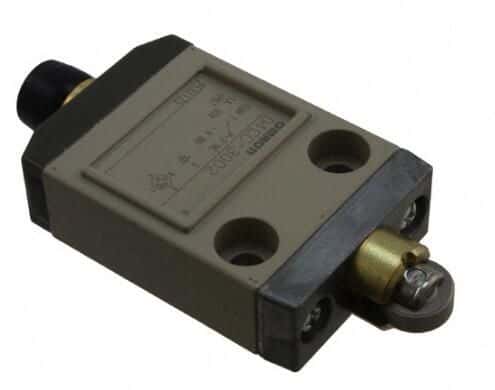

SPDT limit switch featuring a top roller plunger actuator with screw mounting. Rated for 1A at 125VAC, this switch offers a mechanical life of 10,000,000 cycles and an electrical life of 200,000 cycles. It operates with an 11.77N operating force and a 1.122-inch operating position. Constructed from stainless steel, it boasts IP67, waterproof, and dust-tight ratings, with a temperature range of -10°C to 70°C. Approvals include UL and CSA, and it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4CC-1002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Current Rating | 1A |
| Depth | 17.4mm |
| Diameter | 12mm |
| Differential Travel | 0.008inch |
| Electrical Life | 200000Cycles |
| Height | 85.5mm |
| Length | 40mm |
| Material | Stainless Steel |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 125V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Chassis Mount, Panel, Screw |
| Number of Poles | 1 |
| Operating Force | 11.77N |
| Operating Position | 1.122inch |
| Orientation | Straight |
| Overtravel | 0.118inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.071inch |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | D4CC |
| Switch Function | On-Mom |
| Termination | Connector |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| RoHS | Compliant |
