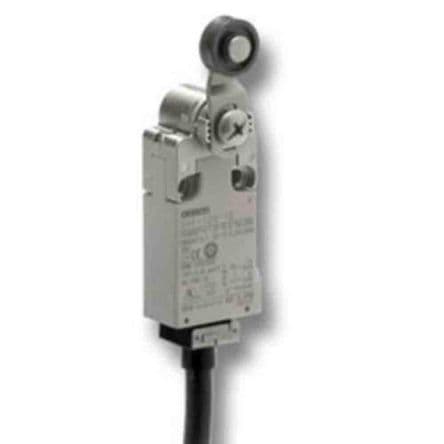

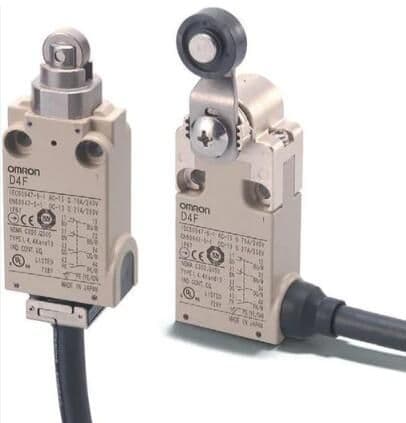

The D4F-102-3R is a DPST chassis mount switch with a maximum operating temperature of 70°C and a minimum operating temperature of -30°C. It has an electrical life of 150,000 cycles and a mechanical life of 10,000,000 cycles. The switch is rated for 120V AC and 125V DC and features an operating force of 1224gf. It is compliant with IP67, waterproof, and dust tight ratings and is packaged in bulk with cable leads.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4F-102-3R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Electrical Life | 150000Cycles |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Chassis Mount |
| Operating Force | 1224gf |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | D4F |
| Termination | Cable Leads |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| RoHS | Compliant |
Download the complete datasheet for Omron D4F-102-3R to view detailed technical specifications.
