Technical Specifications
Omron D4MC-2000 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Current Rating | 10A |
| Electrical Life | 500000Cycles |
| Max Current Rating | 10A |
| Max Operating Temperature | 80°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Chassis Mount |
| Operating Force | 200gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4MC |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4MC-2000 Datasheet
Download the complete datasheet for Omron D4MC-2000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

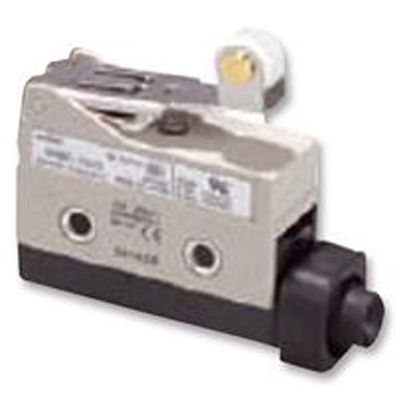

Product Images
