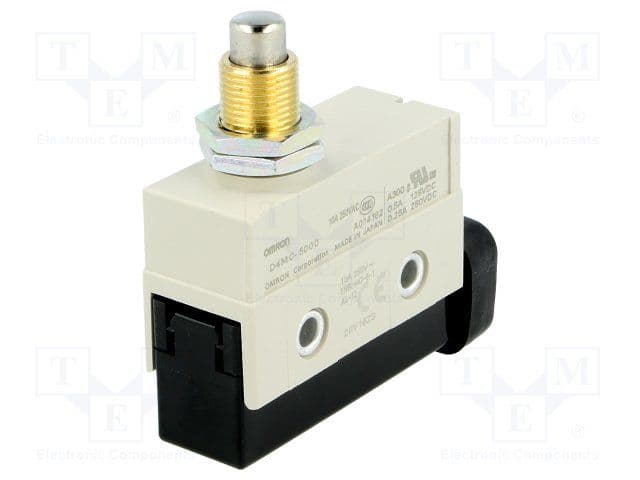

SPDT snap-action limit switch featuring a top plunger actuator and screw termination. Rated for 10A at 480VAC and 250VDC, with a 600gf operating force and linear movement. Offers a 500,000-cycle electrical life and 10,000,000-cycle mechanical life. IP67 rated for waterproof and dust-tight operation, with UL, CSA, and CCC approvals. Mountable via panel or screw, with dimensions of 70mm (L) x 47mm (W) x 68.4mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4MC-5000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PLUNGER |
| Approvals | UL, CSA, CCC |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 21.7mm |
| Electrical Life | 500000Cycles |
| Height | 68.4mm |
| Length | 70mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 480V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Panel, Screw |
| Operating Force | 600gf |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4MC |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 47mm |
| RoHS | Compliant |
