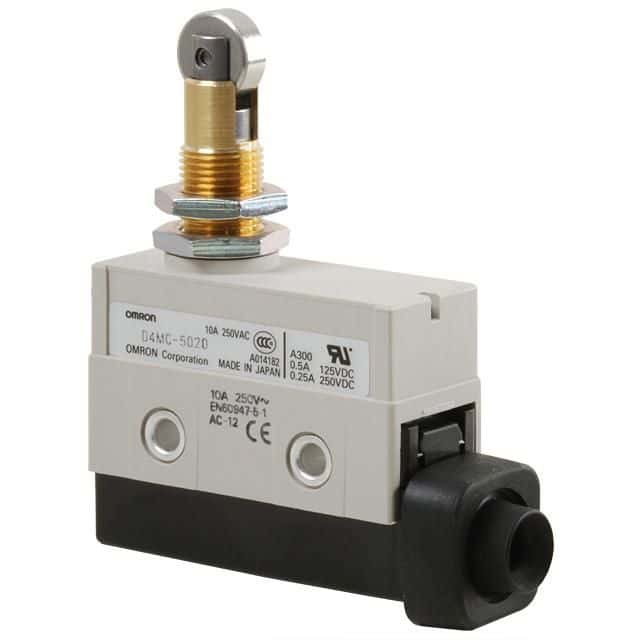

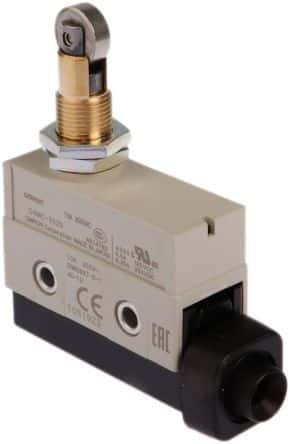

SPDT limit switch featuring snap action contacts, a top roller plunger actuator, and screw termination. Rated for 10A at 480VAC and 30VDC, with a 125V AC rating. Offers a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Operates within a temperature range of -10°C to 80°C, with an operating force of 600gf. This waterproof and dust-tight switch is RoHS compliant and panel mountable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4MC-5020 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 21.7mm |
| Electrical Life | 500000Cycles |
| Lead Free | Lead Free |
| Length | 70mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 80°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Operating Force | 600gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D4MC |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | DPDT, SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 47mm |
| RoHS | Compliant |
