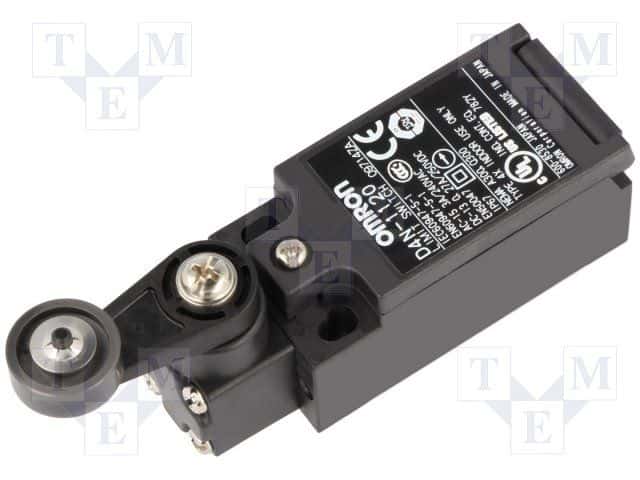

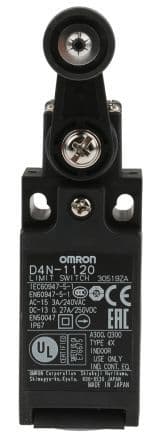

SPDT limit switch with rotary side roller lever actuator, screw termination, and chassis mount. Features a 10A, 250VAC rating with a 5N operating force. Offers 2 contacts, DPDT/DPST/SPDT throw configurations, and a 250VDC rated voltage. Rated IP67 for waterproof and dust-tight operation, with electrical life of 300,000 cycles and mechanical life of 15,000,000 cycles. Operating temperature range from -30°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D4N-1120 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Approvals | UL, CSA, TUV, CCC |
| Current Rating | 10A |
| Depth | 47mm |
| Electrical Life | 300000Cycles |
| Height | 107.75mm |
| Length | 31mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Screw |
| Number of Contacts | 2 |
| Operating Force | 5N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| Series | D4N |
| Termination | Screw |
| Throw Configuration | DPDT, DPST, SPDT |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 250V |
| Width | 31mm |
| RoHS | Compliant |
