Industrial limit switch featuring a top plunger actuator, designed for panel or chassis mounting with screw termination. Offers a robust operating force of 6.5N and a differential travel of 0.04 inches, with an operating position at 0.715 inches. Electrical life is rated at 300,000 cycles, with a mechanical life of 15,000,000 cycles. This switch boasts multiple voltage ratings including 120V AC, 250V AC, and 125V DC, with current ratings of 10A and 2.5A. It is IP67 rated for waterproof and dust-tight operation, and holds UL, CSA, TUV, and CCC approvals.
Current Rating2.5A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D4N-1131 technical specifications.
General
| Actuator Type | PLUNGER |
| Approvals | UL, CSA, TUV, CCC |
| Current Rating | 2.5A |
| Depth | 31.5mm |
| Differential Travel | 0.04inch |
| Electrical Life | 300000Cycles |
| Height | 73.2mm |
| Length | 31mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Chassis Mount, Screw |
| Number of Contacts | 2 |
| Operating Force | 6.5N |
| Operating Position | 0.715inch |
| Orientation | Straight |
| Overtravel | 0.158inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.08inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| Series | D4N |
| Termination | Screw |
| Throw Configuration | SPST, DPST, SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| Width | 31mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4N-1131 Datasheet
Download the complete datasheet for Omron D4N-1131 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

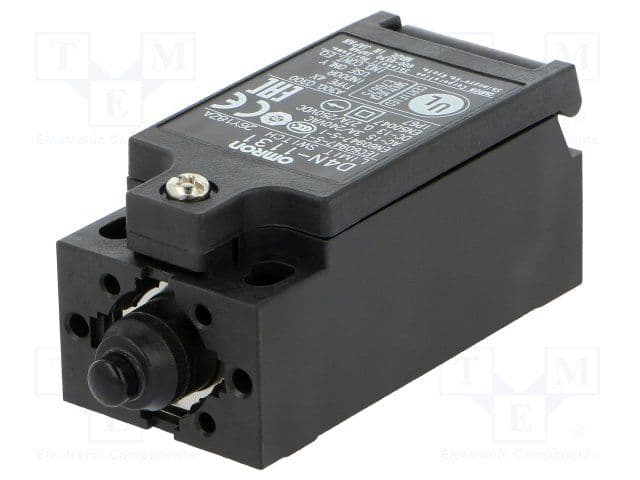

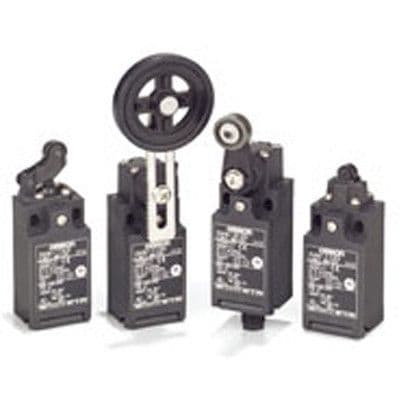

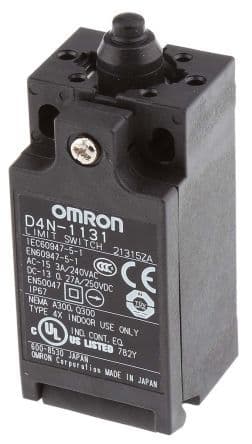

Product Images
