Omron
D4N-1A2G
Switch Limit N.O./N.C. SPDT Adjustable Roller Lever Screw Mount 10A 250VAC 4.5N Rotary Conduit
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4N-1A2G technical specifications.
General
| Actuator Type | Rotary |
| Depth | 45mm |
| Electrical Life | 300000Cycles |
| Length | 64mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Chassis Mount |
| Number of Contacts | 2 |
| Operating Force | 459gf |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | D4N |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 250V |
| Width | 31mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4N-1A2G Datasheet
Download the complete datasheet for Omron D4N-1A2G to view detailed technical specifications.
No datasheet is available for this part.

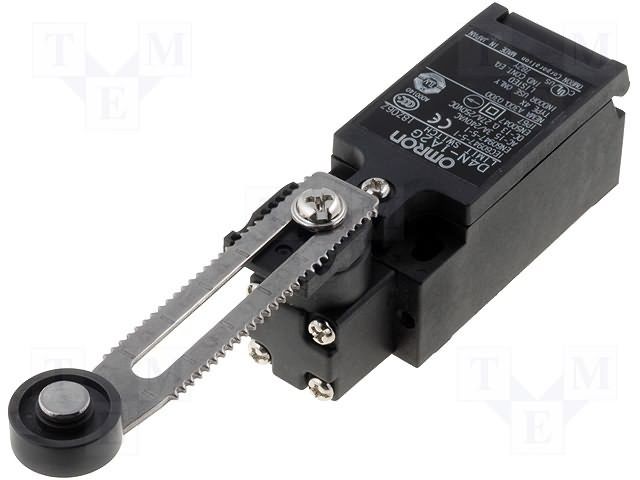

Product Images
