Current Rating2.5A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4N-4C32 technical specifications.
General
Actuator Type
TOP ROLLER PLUNGER
Current Rating
2.5A
Electrical Life
300000Cycles
Max Operating Temperature
70°C
Mechanical Life
15000000Cycles
Min Operating Temperature
-30°C
Mount
Chassis Mount
Operating Force
663gf
Operating Position
1.125inch
Overtravel
0.158inch
Package Quantity
1
Packaging
Bulk
Pretravel
0.08inch
Ratings
IP67, Waterproof, Dust Tight
Series
D4N
Termination
Screw
Throw Configuration
3PST
Voltage Rating (AC)
240V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Omron D4N-4C32 Datasheet
Download the complete datasheet for Omron D4N-4C32 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

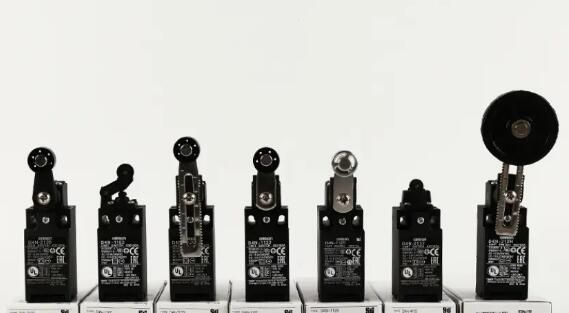

Product Images
