Technical Specifications
Omron D4N2132 technical specifications.
General
| Current Rating | 2.5A |
| Depth | 30mm |
| Differential Travel | 0.04inch |
| Electrical Life | 300000Cycles |
| Length | 83.6mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Chassis Mount |
| Number of Contacts | 2 |
| Operating Position | 1.125inch |
| Overtravel | 0.158inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.08inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | D4N |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| Width | 31mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4N2132 Datasheet
Download the complete datasheet for Omron D4N2132 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

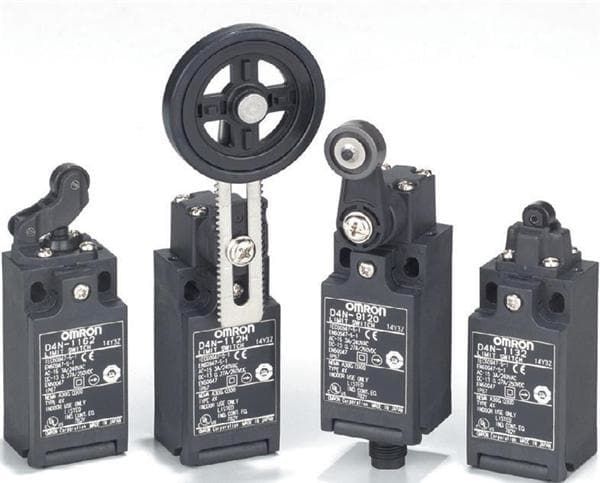

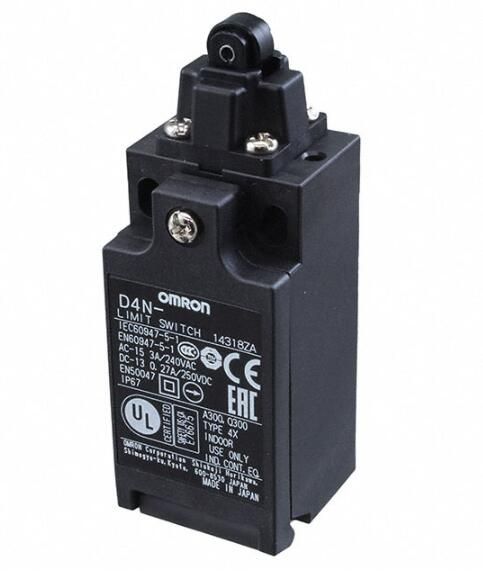

Product Images
