Technical Specifications
Omron D4NL-4ADG-B-NPT technical specifications.
General
Actuator Type
Disconnect
Electrical Life
500000Cycles
Max Operating Temperature
55°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-10°C
Mount
Chassis Mount
Operating Force
3059gf
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Series
D4NL
Termination
Screw
Throw Configuration
DPST
Voltage Rating (AC)
240V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Omron D4NL-4ADG-B-NPT Datasheet
Download the complete datasheet for Omron D4NL-4ADG-B-NPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

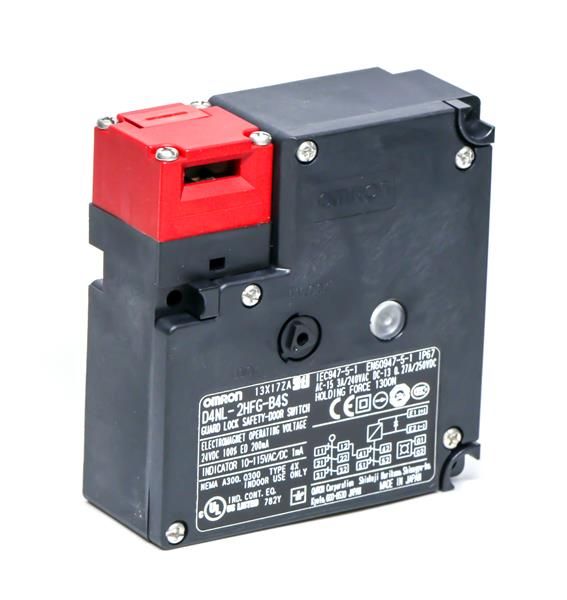

Product Images
