Technical Specifications
Omron D4NL-4CFG-B technical specifications.
General
Actuator Type
Disconnect
Coil Voltage (DC)
24V
Current Rating
3A
Depth
35.5mm
Electrical Life
500000Cycles
Length
95mm
Max Operating Temperature
55°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-10°C
Mount
Chassis Mount
Operating Supply Voltage
24V
Package Quantity
1
Packaging
Bulk
Pretravel
0.354inch
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
D4NL
Termination
Screw
Throw Configuration
DPST
Voltage Rating (AC)
240V
Width
88.5mm
Compliance
RoHS
Compliant
Datasheet
Omron D4NL-4CFG-B Datasheet
Download the complete datasheet for Omron D4NL-4CFG-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

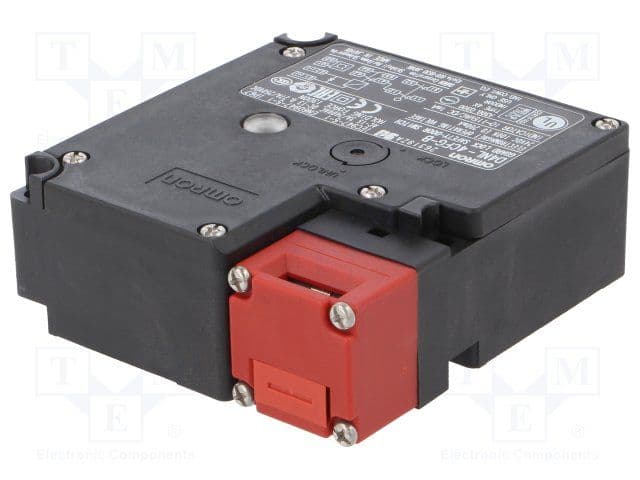

Product Images
