Omron
D4NS-1BF
Switch Safety Interlock N.C. DPST Key 3A 240VAC 250VDC Screw Mount Conduit 1000000Cycles
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4NS-1BF technical specifications.
General
Actuator Type
Disconnect
Current Rating
10A
Depth
30mm
Electrical Life
500000Cycles
Length
96mm
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-30°C
Mount
Chassis Mount
Operating Force
3059gf
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D4NS
Switch Function
On-Off
Termination
Screw
Throw Configuration
DPDT, DPST
Voltage Rating (AC)
240V
Width
31mm
Compliance
RoHS
Compliant
Datasheet
Omron D4NS-1BF Datasheet
Download the complete datasheet for Omron D4NS-1BF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

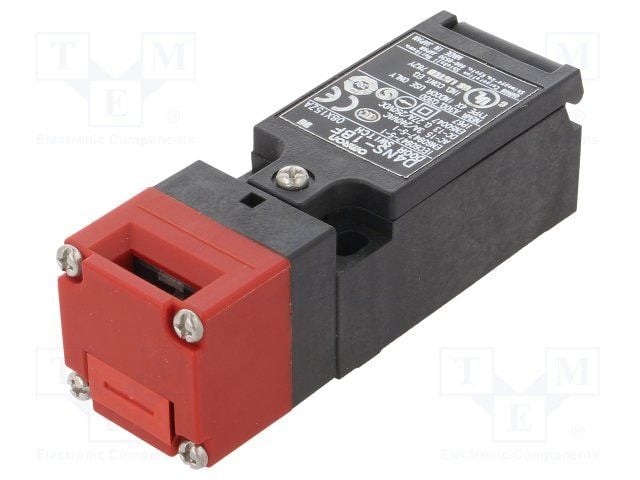

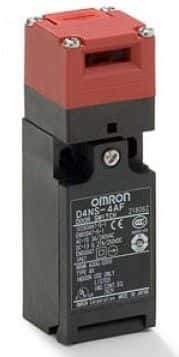

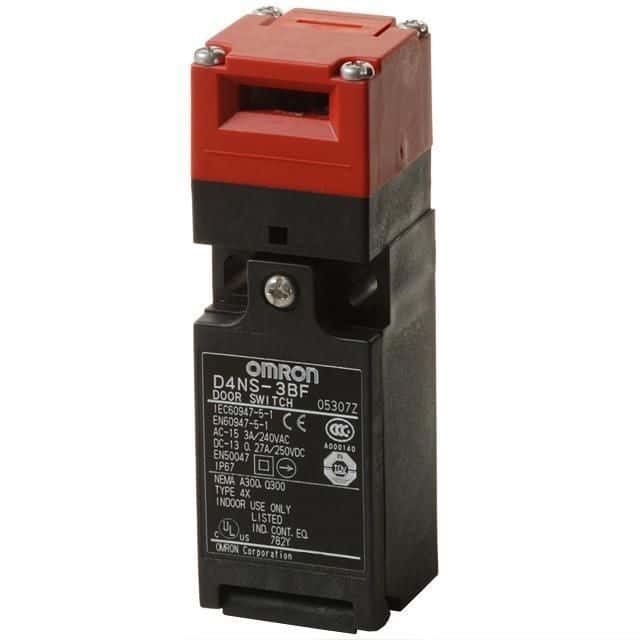

Product Images
