Safety interlock switch with a 3PST throw configuration, featuring both normally open and normally closed contacts. Rated for 3A at 240VAC and 250VDC, this switch offers a mechanical life of 1,000,000 cycles and an electrical life of 500,000 cycles. Designed for chassis mounting with screw termination, it operates across a temperature range of -30°C to 70°C and boasts IP67, waterproof, and dust-tight ratings. The disconnect actuator requires an operating force of 3059gf.
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4NS-2CF technical specifications.
General
| Actuator Type | Disconnect |
| Depth | 96mm |
| Electrical Life | 500000Cycles |
| Length | 31mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Chassis Mount |
| Operating Force | 3059gf |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | D4NS |
| Termination | Screw |
| Throw Configuration | 3PST |
| Voltage Rating (AC) | 240V |
| Width | 30mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D4NS-2CF Datasheet
Download the complete datasheet for Omron D4NS-2CF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

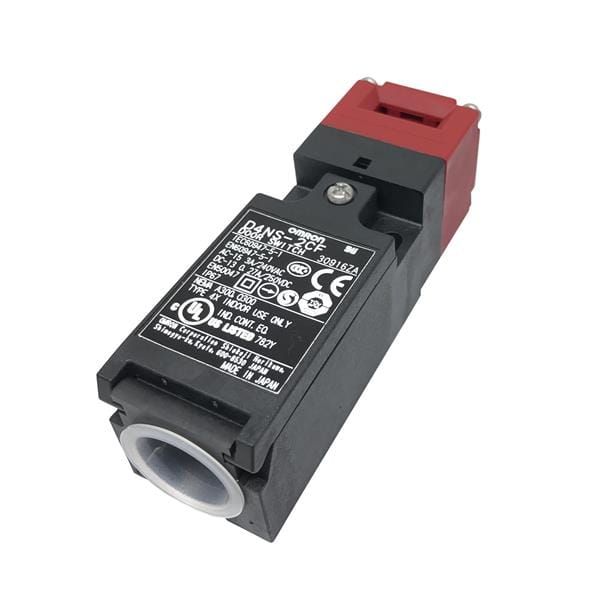

Product Images
