Omron
D4NS-3CF
Switch Safety Interlock N.O./N.C. SPST/DPST Key 3A 240VAC 250VDC Screw Mount Conduit 1000000Cycles
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D4NS-3CF technical specifications.
General
| Actuator Type | Disconnect |
| Contact Current Rating | 10A |
| Current Rating | 10A |
| Electrical Life | 500000Cycles |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Chassis Mount |
| Operating Force | 3059gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Series | D4NS |
| Termination | Screw |
| Throw Configuration | DPST, 3PST |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron D4NS-3CF Datasheet
Download the complete datasheet for Omron D4NS-3CF to view detailed technical specifications.
No datasheet is available for this part.

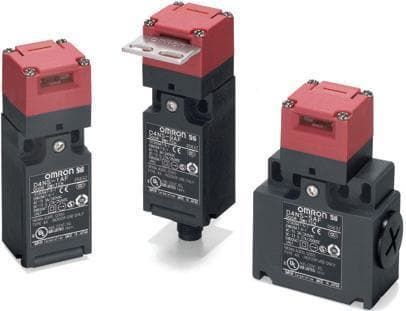

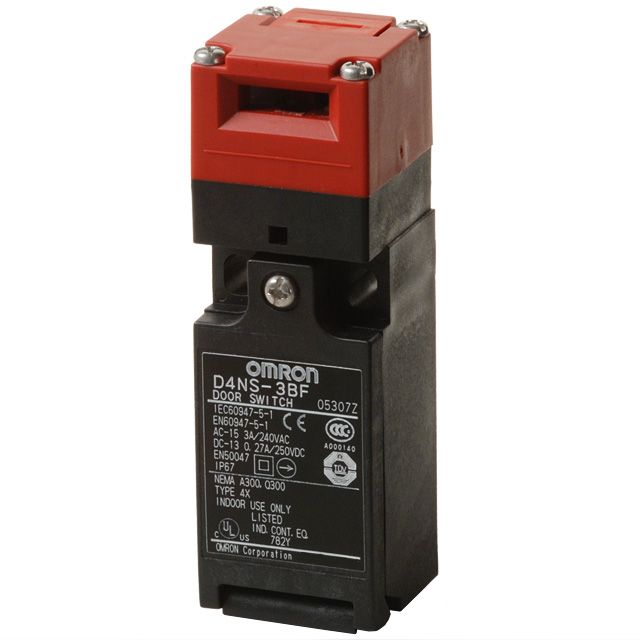

Product Images
