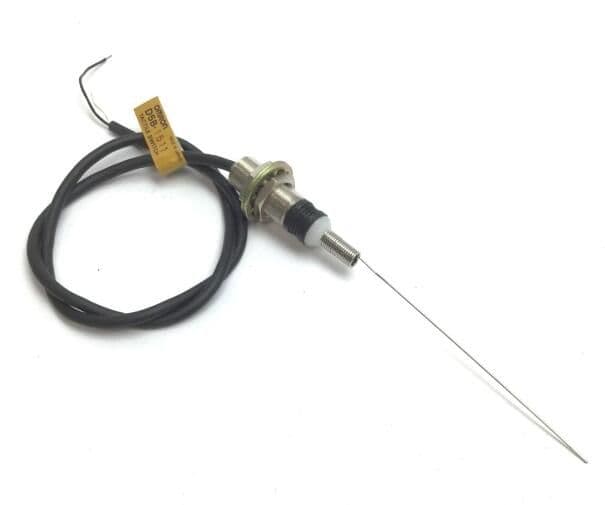

The Omron D5B-1511 is a mechanical switch with a current rating of 30mA and a maximum operating temperature of 70°C. It features a panel mount design and is rated for 5gf operating force. The switch has a DC rated voltage of 30V and is compliant with IP67, Waterproof, and Dust Tight ratings. It is available in a bulk packaging with a single unit per package and has a mechanical life of 10,000,000 cycles and electrical life of 5,000,000 cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D5B-1511 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D5B-1511 technical specifications.
| Current Rating | 30mA |
| Electrical Life | 5000000Cycles |
| Max Current Rating | 300mA |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Operating Force | 5gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.551inch |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | D5B |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | SPST |
| Type | Mechanical |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
Download the complete datasheet for Omron D5B-1511 to view detailed technical specifications.
