Analog air and liquid flow sensor with ±3% accuracy. Features an aluminum body and screw mount, operating within a -10°C to 60°C temperature range. Provides a 0-5V analog output, powered by a 10.8V to 26.4V DC supply voltage. This RoHS compliant component measures 37mm in length and 62mm in width.
MountingScrew
Quick Jump:
Technical Specifications
Omron D6F-05N2-000 technical specifications.
General
| Accuracy | 3% |
| Body Material | Aluminium |
| Lead Free | Lead Free |
| Length | 37mm |
| Material | Aluminium |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Voltage | 5V |
| Max Supply Voltage (DC) | 26.4V |
| Min Supply Voltage (DC) | 10.8V |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Mount | Screw |
| Operating Supply Voltage | 24V |
| Output Type | Analog |
| Output Voltage | 5V |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D6F |
| Width | 62mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D6F-05N2-000 Datasheet
Download the complete datasheet for Omron D6F-05N2-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

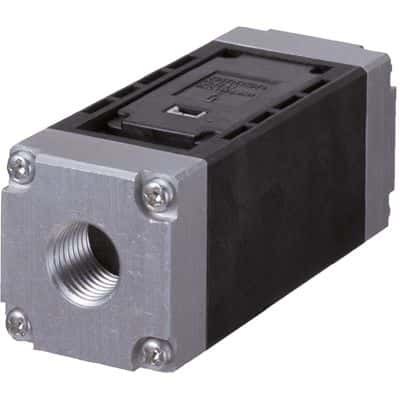

Product Images
