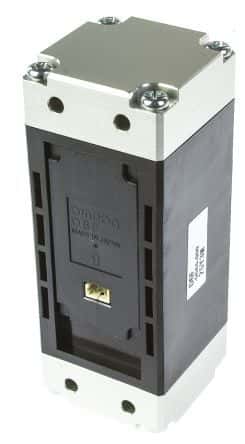

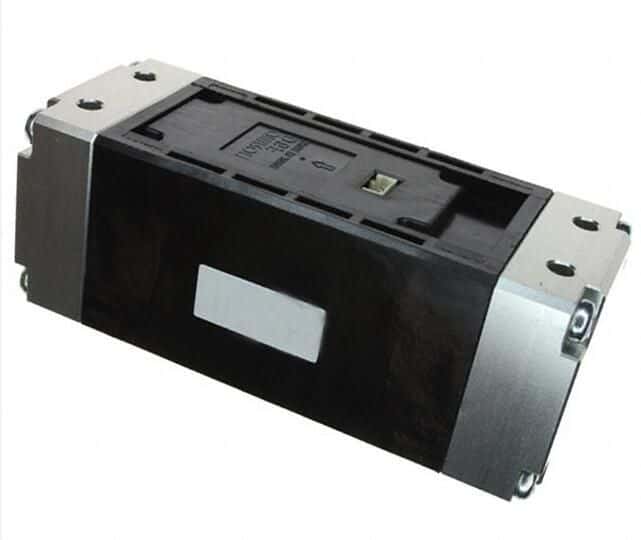

The D6F Series flow sensor is a 2-port analog output device with a maximum operating temperature of 60°C and a minimum operating temperature of -10°C. It has a maximum supply voltage of 26.4V and a minimum supply voltage of 10.8V. The sensor is made of aluminium, resin, and thermoplastic materials and is packaged in bulk. It is RoHS compliant and has a lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D6F-50A5-000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D6F-50A5-000 technical specifications.
| Accuracy | 3% |
| Body Material | Aluminium, Resin, Thermoplastic |
| Height | 30mm |
| Lead Free | Lead Free |
| Length | 78mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Voltage | 6V |
| Max Supply Voltage (DC) | 26.4V |
| Min Supply Voltage (DC) | 10.8V |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Mount | Screw |
| Number of Ports | 2 |
| Operating Supply Voltage | 24V |
| Output Type | Analog |
| Output Voltage | 5V |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D6F |
| Width | 78mm |
| RoHS | Compliant |
