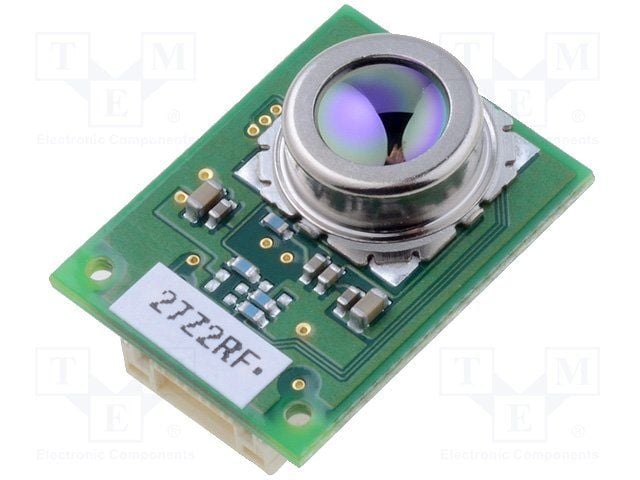

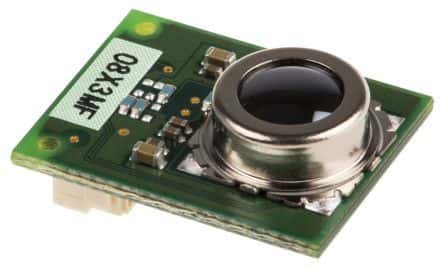

Digital MEMS thermal sensor module with I2C, SMBus, and 2-wire serial interface. Operating temperature range from 0°C to 50°C, requiring a 4.5V to 5.5V DC supply voltage with a maximum supply current of 5mA. Features a surface mount design with solder termination, measuring 18mm in length, 14mm in width, and 4.5mm in height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D6T-44L-06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D6T-44L-06 technical specifications.
| Package/Case | Module |
| Height | 4.75mm |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Length | 18mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 5mA |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 4.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount, Screw |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 5V |
| Output Type | Digital, I2C |
| Package Quantity | 10 |
| Packaging | Tray |
| Primary Type | TEMPERATURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D6T |
| Termination | Solder |
| Width | 14mm |
| RoHS | Compliant |
Download the complete datasheet for Omron D6T-44L-06 to view detailed technical specifications.
