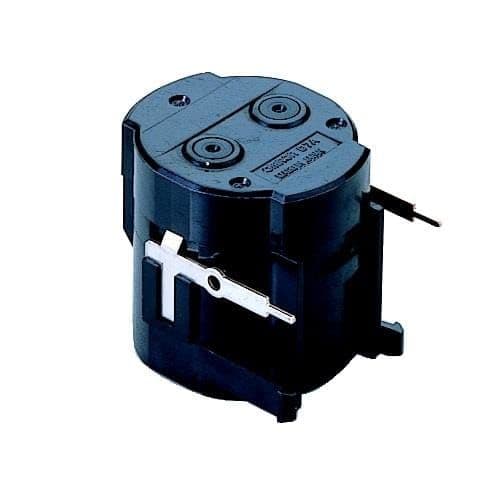

The Omron D7A-1 is a single-pole single-throw switch with a maximum operating temperature range of -30°C to 70°C. It has a maximum voltage rating of 250V AC and 3V DC. The switch is designed for through-hole mounting and has a series designation of D7A. It is lead-free and has an electrical life of 10,000 cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D7A-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Depth | 23.2mm |
| Body Height | 22.3mm |
| Body Length | 19.6mm |
| Electrical Life | 10000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 3V |
| Mount | Through Hole |
| Orientation | Straight |
| Packaging | Bulk |
| Series | D7A |
| Termination | PC Pins |
| Throw Configuration | SPST |
| RoHS | Compliant |
Download the complete datasheet for Omron D7A-1 to view detailed technical specifications.
