DPDT snap action switch featuring a short hinge roller lever actuator. Rated for 10A at 480VAC and 250VDC, with silver contacts and screw terminals. Offers a mechanical life of 1,000,000 cycles and an electrical life of 500,000 cycles. Operating force is 3.92N, with a differential travel of 0.094 inches and overtravel of 0.035 inches. Panel and chassis mountable, with a temperature range of -25°C to 80°C.
Current Rating10A
MountingPanel, Chassis Mount
Quick Jump:
Technical Specifications
Omron DZ-10GW22-1B technical specifications.
General
Actuator Material
Stainless Steel, Plastic
Contact Material
Silver
Current Rating
10A
Depth
17.45mm
Differential Travel
0.094inch
Electrical Life
500000Cycles
Lead Free
Lead Free
Length
49.2mm
Max Current Rating
10A
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
250V
Mechanical Life
1000000Cycles
Mount
Panel, Chassis Mount
Operating Force
400gf
Operating Position
1.188inch
Overtravel
0.035inch
Package Quantity
1
Packaging
Bulk
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
DZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron DZ-10GW22-1B Datasheet
Download the complete datasheet for Omron DZ-10GW22-1B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

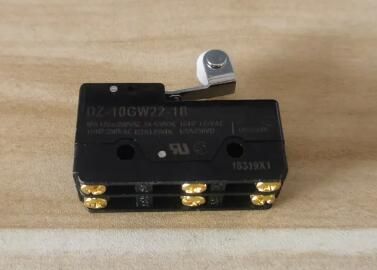

Product Images
